Description

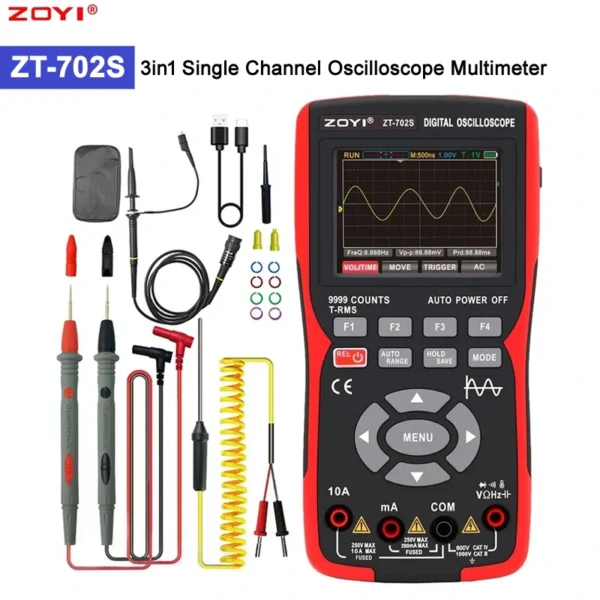

ZOYI ZT-702S Digital Oscilloscope Multimeter Tester Single Channel 10MHz Bandwidth Sampling Rate 200/280Msa/s Function Signal Generator
Product Features :-

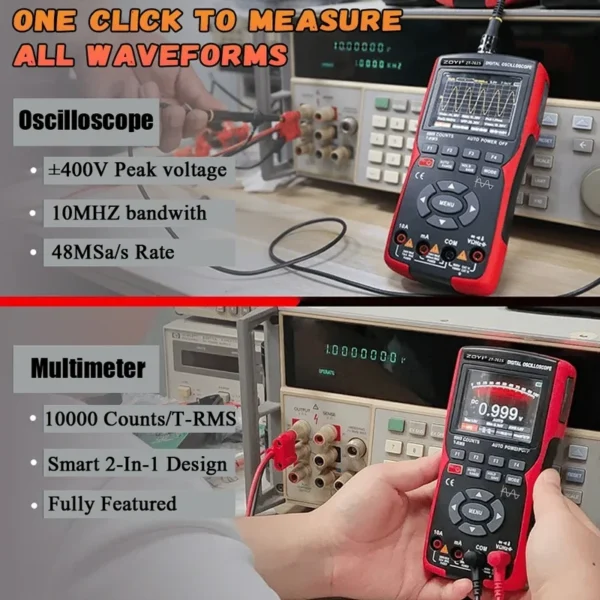

- 2-in-1: The ZOYI 702s is a single-channel handheld device with both oscilloscope and multimeter functionality, featuring a 2.8″ IPS display, 10 Mhz bandwidth, 48 MSa/s fast real-time sampling rate, ±400 V input capability, 64Kb recording depth, and dual-mode switching between oscilloscope and multimeter. Easy to use and improves work efficiency

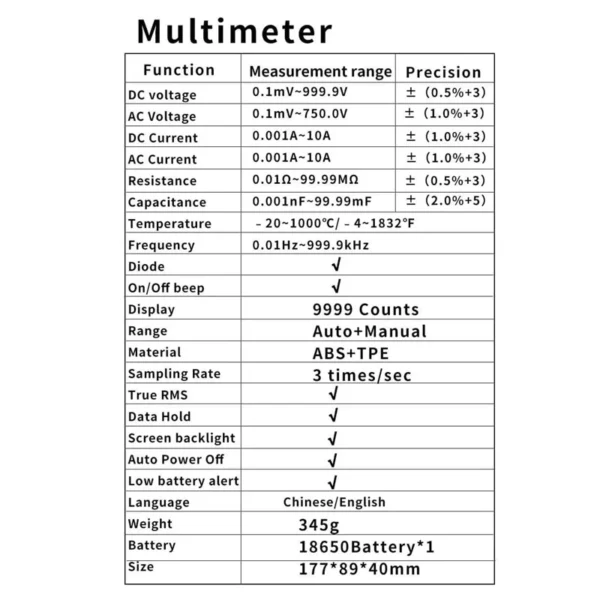

- Multimeter Test Mode: 9999 count; AC Voltage: 0-750 V; DC Voltage: 0-999.9 V; DC/AC Current: 0-9.999 A; Resistance: 0-99.99 MΩ; Capacitance: Frequency: 0-99.99 kHZ; Temperature: -20°C – 1000°C; Diode, Continuity Measurement. Continuity Measurement. Multifunctional measuring instrument ideal for professionals, factories, schools, hobbyists and families
- Superior design: double injection molded ABS and TPE reinforced construction for excellent impact resistance and long-lasting durability; 320*240 resolution; large font design for easy data reading; adjustable brightness for various measurements in complex environments
- Waveform Storage and Viewing: The oscilloscope automatically stores the currently measured waveform data in the form of run number and image in the memory; connect the oscilloscope to the computer via TYPE-C cable, click on the USB flash drive and open the image folder, then you can access or download the waveforms to a safer location in the computer for easy backup and analysis
