Description

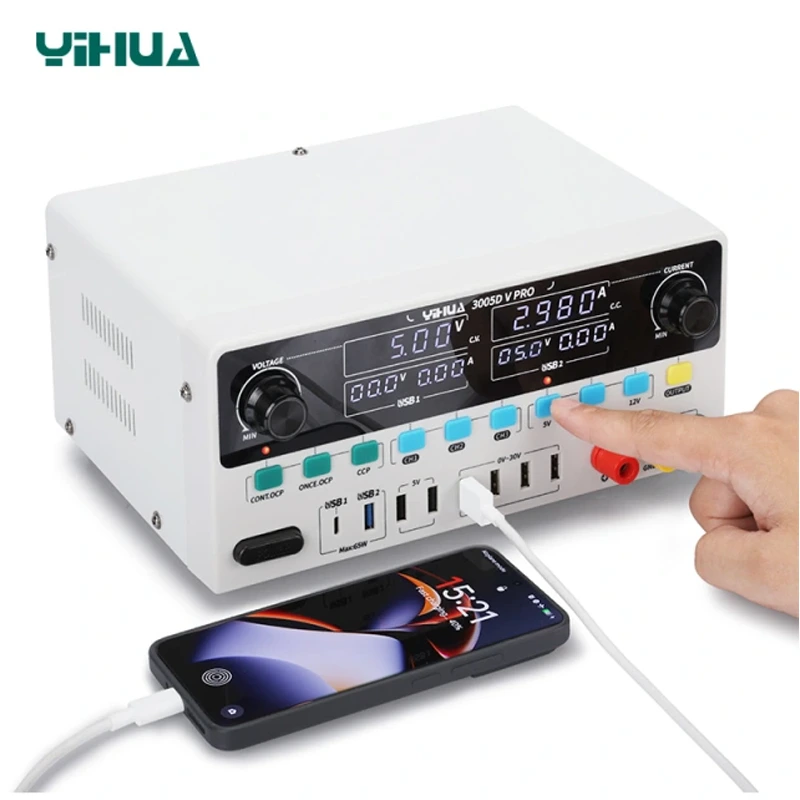

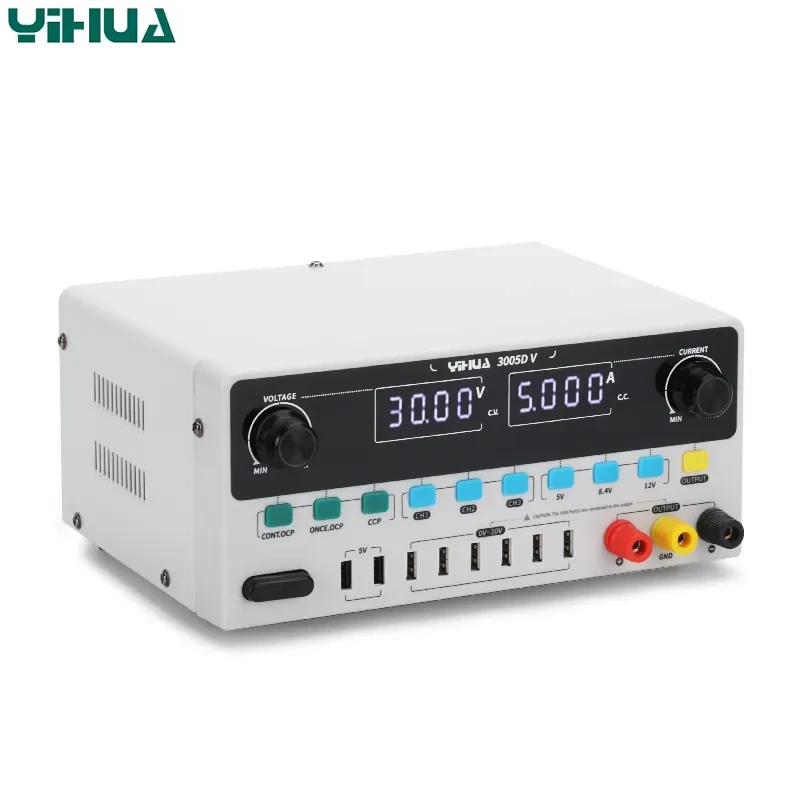

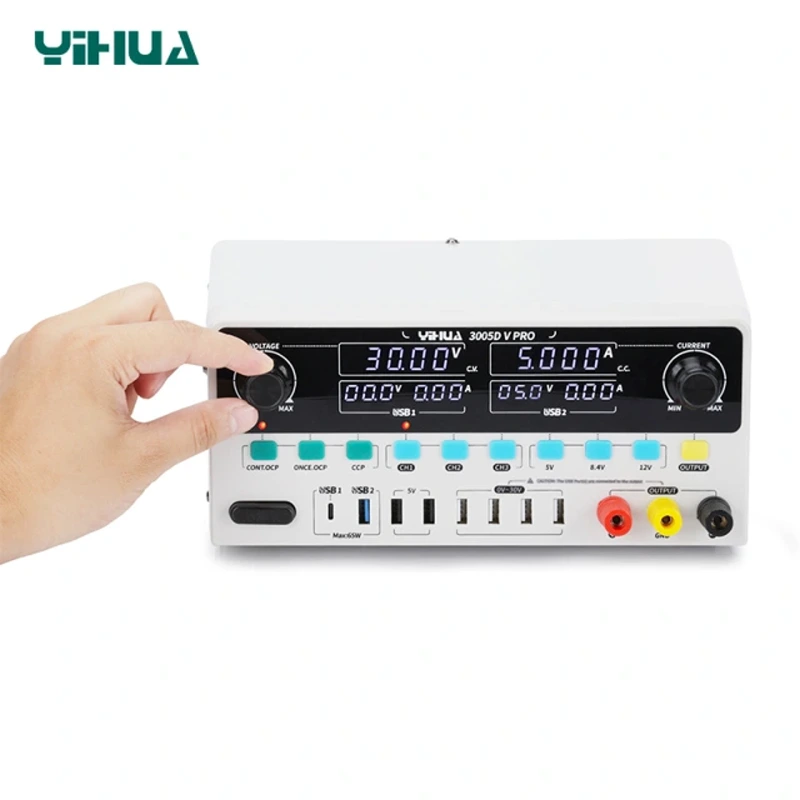

YIHUA 3005D V Pro Linear DC Power Supply Variable 30V 5A Single Output Digital DC Power Supply
Product Features :-
- Highly stable voltage regulation,great load capacity, low ripple.With short circuit protection, overcurrent protection and over-heat protection functions.
- Toroidal transformer inside, minimizing losses and reduced heat generation
- Quick-access non-adjustable voltages of SV, SAV, and 12V, as well as three pre-set channels to switch among multiple voltage settings quickly.
- With constant current output, overcurrent auto-stop, and overcurrent auto-resumption mode. Users can choose the appropriate mode based on their applications.
- With 65W quick
Product Specification :-
- Rated Power:330W
- Main Unit Dimensions:L195XW250XH117mm ±10mm
- Operating Ambient Temperature: -10°c-40°c/14°F -104 °F
- Relative Humidity: <90%
- Output Voltage DC :0~30V
- Output Power :150W
- Accuracy (Voltage) :<0.1 %t0.03V
- Accuracy (Current): <03%t3mA
- Load Regulation :<0.6%+10mV
- Ripple Vrms:<0.5%(10Hz-1MHz)
- Output Current :0-5A
